High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine
High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine
High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

Gambar besar :  High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

Detail produk:
Tempat asal: Cina, Hebei
Nama merek: CHBEST
Sertifikasi: CE/ISO
Nomor model: Chbest-45 & 67
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1Set
Harga: USD+7500+SET
Kemasan rincian: Standar
Waktu pengiriman: 35 hari
Syarat-syarat pembayaran: L/C,T/T,Western Union,MoneyGram
Menyediakan kemampuan: 15 SET/Bulan
Kontak

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine

Deskripsi
Nama: Cutting Flying Berkecepatan Tinggi Garis Double U & C Steel Profile Making Roll Forming Machine Warna: Sesuai kebutuhan Anda
Voltase: 380V/50HZ/3FASE Bahan: ≤0,01°/jam,1σ
Ketebalan panel bingkai: 14mm Jaminan: 2 Tahun
Menyoroti:

high speed steel profile roll forming machine

,

double line U&C roll forming machine

,

stud and track roll forming machine with warranty

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine
This advanced roll forming system features dual production lines with high-speed flying cutting technology for efficient manufacturing of U and C steel profiles.
Work Flow Process
Decoiler → Feeding → Roll Forming → Cut to Length → Multi-Revising → Output Table

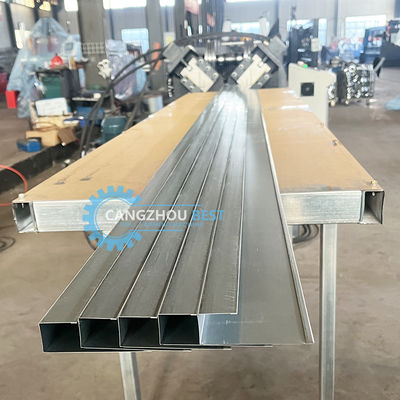

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 0
Machine Components
ComponentQuantity
Decoiler1 set
Roll Forming Machine1 set
Cutting Device1 set
Multi Revising1 set
PLC Control Box1 set
Hydraulic Pump1 set
Output Table1 set
Decoiler Specifications
ParameterSpecification
Max. Width300 mm
Inner DiameterΦ450 - Φ550 mm
Outer Diameter1000 mm
Max. Loading Capacity3000 kgs
TypeManual or Hydraulic (Optional)
Roll Forming Machine Specifications
ParameterSpecification
Material Thickness0.6-1.2mm PPGI and GI
Roller Stations14 groups
Material for RollersHigh grade 45# steel polished and coated with chrome HRC55-60°
Diameter of Shaft60mm
Bottom Frame36# H-section steel
Motor Power3kw
Driven Type1.0" Chain
Shaft MaterialHigh grade 45# steel polished and coated with chrome HRC55-60°

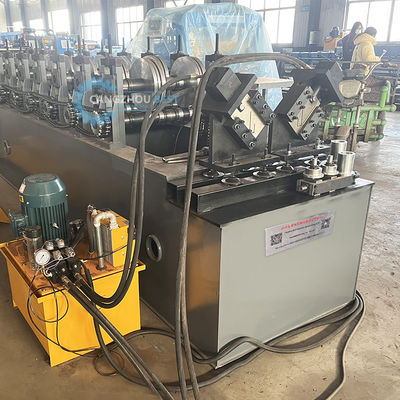

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 1
Cutting Device Specifications
ParameterSpecification
TypeHydraulic, Automatic Cut-Off
Power3kw
Cutting Blade MaterialCr12 steel after treatment Hardness for Heat Treatment: HRC55-60°
Multi Revising Device
This device uses one group of rollers made from 45# steel polished and coated with chrome HRC55-60° to straighten the finished product, ensuring dimensional accuracy and quality.
Control System
ComponentSpecification
TypePLC Frequency Control System with touch screen
PLC BrandDelta
Encoder BrandOmron
Length Error±2mm
LanguageEnglish and Chinese
Hydraulic Pump Specifications
ComponentSpecification
Motor3kw China brand or according to your request
PumpChina brand or according to your request
Solenoid ValveChina brand or according to your request
Cooling SystemCooling fan
Output Table
No power type with a length of 2 meters for efficient product handling and collection.

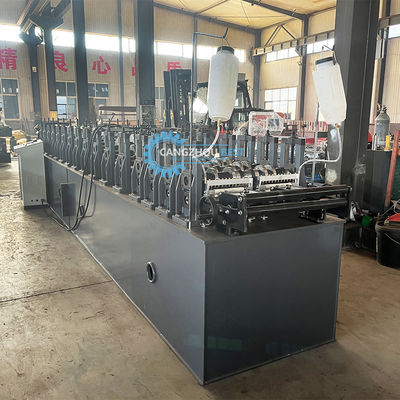

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 2
Packing Details
  • 40 GP container; main machine naked and fastened with iron wire in the container
  • Rollers painted with oil and packed with plastic film
  • Electric devices packed with wooden box for standard export packing
  • All components fixed by steel wire with container
Installation and Training
  • If buyers visit our factory, we provide face-to-face installation training for your workers/technician
  • Without visiting, we supply user manual and instructional videos for installation and operation
  • For on-site technician support, please arrange round trip tickets, accommodation, meals, and daily salary of USD100 plus visa costs

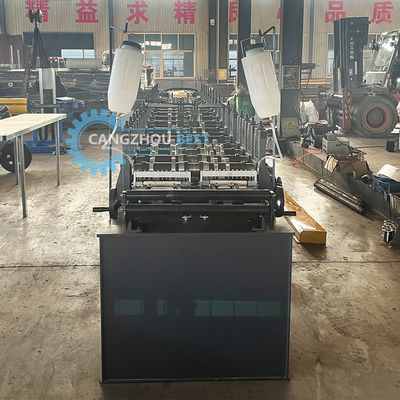

High Speed Flying Cutting Double Line U&C Steel Profile Making Roll Forming Machine 3
