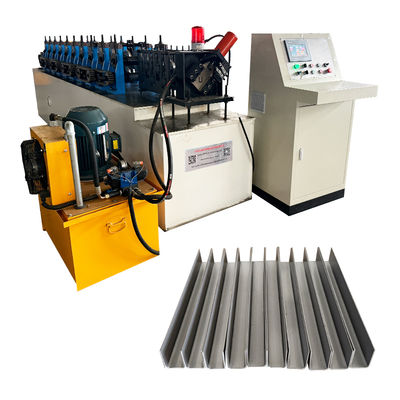

Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine

Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine
Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine

Gambar besar :  Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine

Detail produk:
Tempat asal: Cina, Hebei
Nama merek: CHBEST
Sertifikasi: CE/ISO
Nomor model: U30x30
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Kemasan rincian: Standar
Waktu pengiriman: 35 hari
Menyediakan kemampuan: 15 SET/Bulan
Kontak

Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine

Deskripsi
Nama: Profil Profil Baja Pemotongan Cetakan Hidraulik U Truk Saluran Roll Forming Mesin Warna: Sesuai kebutuhan Anda
Voltase: 380V/50Hz/3Phase Ukuran mesin: 10m*1.2m
Jaminan: 2 tahun Jenis pemotongan: Hidrolik
Menyoroti:

hydraulic cutting mold machine

,

steel profile roll forming machine

,

U channel roll forming machine

         Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine



Work Flow

Decoiler------feeding------roll forming-------cut to length-----output table



Machine Component

Decoiler 1set
Roll Forming 1set
Punching Device 1set
Cutting Device 1set
PLC Control Box 1set
Hydraulic Pump 1set
Output Table 1set



Decoiler

Max. Width: 500mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 3000 kgs

Type: Manual Or Hydraulic



Roll Forming Machine

Rolled Material: Cold Rolled Steel Sheet

Material Thickness: 0.8-1.2mm
Rollers: 10 Groups
Material for Rollers: Cr12 steel(quenching and Harding and chroming)

Frame panel thickness:casting frame

Bottom frame: 36# H-section steel
Motor Power: 3kw

Driven type: chain
Speed:10-15m/min

Diameter of shaft: 60mm

Material for shaft: 45# steel(quenching and Harding and chroming)
Hardness for Heat Treatment: HRC55 – 60

Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine 0

Cutting  Device

Material for Cut-Off Modular

 Cr12 steel

Hardness for Heat Treatment:HRC55 – 60



Cut-Off Type

Hydraulic, Automatic Cut-Off

Power

 5.5kw



Control System

Type

PLC Frequency Control System with touch screen

PLC Brand

 Delta

Encoder Brand

 Omron

Length Error

 ±2mm

Language

English and Chinese



Hydraulic Pump

Oil type: 46# hydraulic oil
Pump brand: China brand



Output Table

No power type
Length: 2m



Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine 1



Our Service

Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.
After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.



Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2.rollers were painted with oil and packed with plastic film.

3.electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.





Other Product

roof sheet machine, roof tile machine, c z purlin machine,highway guardrail machine, double layer machine, roller shutter door machine, ceiling drywall machine, door farme machine,cable tray machine, ridge cap machine, water tube machine and so on.



Hydraulic Cutting Mold Cutting Steel Profile U Truck Channel Roll Forming Machine 2
