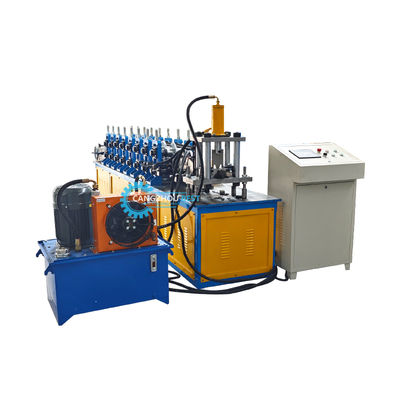

Gambar besar :  Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine

Detail produk:
Tempat asal: China Hebei
Nama merek: CHBEST
Sertifikasi: CE/BV/SGS
Nomor model: XY50x24
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD 8500/ SET
Kemasan rincian: film plastik untuk mesin telanjang
Waktu pengiriman: 30-40 hari
Menyediakan kemampuan: 20 set/bulan
Kontak

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine

Deskripsi
Nama Produk: Mesin Metal Stud dan Track Roll Forming Plafon dengan kecepatan tinggi Sistem Kontrol: Plc
Jenis pemotongan: Pemotongan hidrolik tanpa henti Jaminan: 2 tahun
Seumur hidup: 10 tahun Bahan roller: Baja Cr12
Bahan poros: 45# baja Materi mentah: 0,3-1,5mm
Voltase: 380V/220V sebagai permintaan Anda Kecepatan: 20-30m/mnt
Menyoroti:

light steel frame roll forming machine

,

c-channel purlin roll forming machine

,

stud and track roll forming machine

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine

Product categories of Light Keel Roll Forming Machine, we are specialized manufacturers from China,Light Keel Roll Forming Machine, Stud Light Keel Forming Machine suppliers/factory, wholesale high-quality products of Track Light Keel Forming Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!


Working flow


Decoiler------feeding------roll forming---------punching-------cut to length-----output table




Machine Components


Name Quantity(set)
De-coiler 1
Feeding guiding Device 1
Roll Forming Part 1
Hydraulic cutting Device 1
Computer control box 1
Hydraulic System 1
Run-out table 1


Parameter


Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control.
Control System PLC Panasonic Inverter
Main Frame 350mm H-Beam
Main Power 5.5 kw
Pump Power 3kw
Power Supply 3-Phase,380V,50Hz
Forming Speed 12-14m/min
Hydraulic Pressure 18-20MPa
Forming Size 80mm
Feeding Thickness 1.5-3.2mm
Roller Station 12 Stands
Roller Diameter 60mm
Backboard Thickness 16mm
Chain Size 66mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 9500×1400×1350mm
Total Weight 6T



Working conditions
1. Machine size 10m x 1.2m (L XW)
2. Working size 20m x 2.5m (LXW)
3. Power supply 8.5kw
4. Frequency 50-60HZ
5. Wires/cables 4-6mm²(length according to workshop)
6. Labor cost 2 workers
7. Tools Spanners and screwdriver
8. Lift device 3-5t forklift or crane

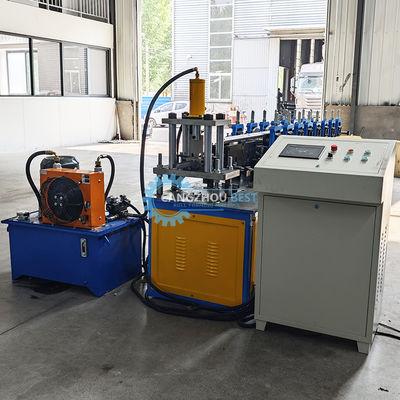

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine 0

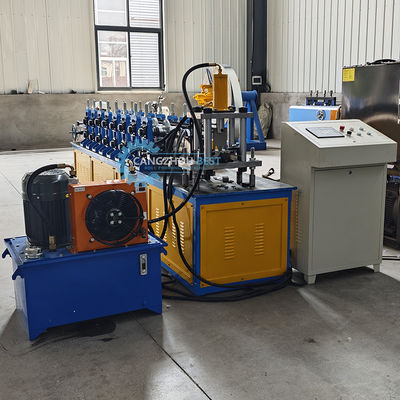

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine 1

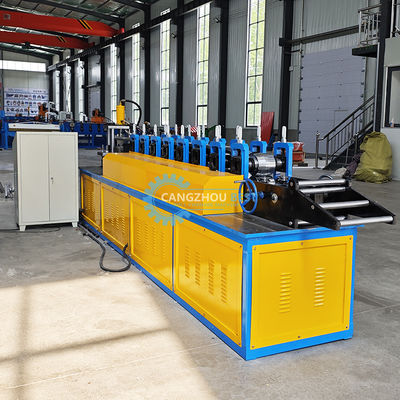

Light steel frame machine, c-channel purlin roll forming machine, roll forming machine, stud and track machine 2


Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
