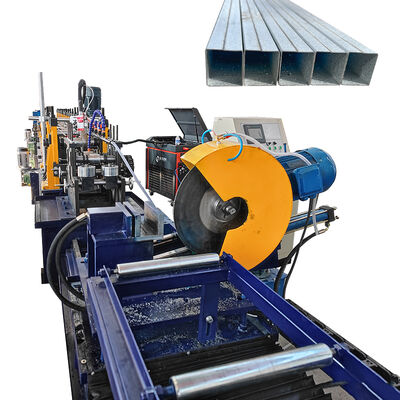

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Gambar besar :  Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Detail produk:
Tempat asal: China Hebei
Nama merek: CHBEST
Sertifikasi: CE/BV/SGS
Nomor model: XY65
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Kemasan rincian: film plastik untuk mesin telanjang
Waktu pengiriman: 40-50 hari
Menyediakan kemampuan: 10 set/bulan
Kontak

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture

Deskripsi
Nama Produk: Pembuatan Mesin Roll Forming Pembuatan Pipa Las Laser Ukuran Perubahan Otomatis Sistem kendali: PLC
Jaminan: 2 Tahun Seumur hidup: Lebih dari 10 tahun
Bahan: PPGI/GI Bingkai bawah: baja 360H
Menyoroti:

automatic laser welding pipe machine

,

down spout roll forming machine

,

change size pipe forming equipment

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine

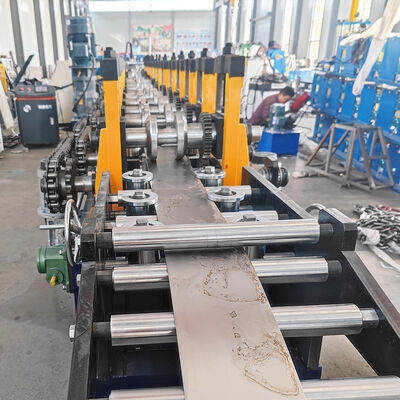

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture 0
Working Process Flow
  • Decoiler → Feeding → Roll Forming → Laser Welding → Cut to Length → Output Table
Machine Components
De-coiler - 1 set
Forming machine - 1 set
Laser welding machine - 1 set
Cutting device - 1 set
PLC control box - 1 set
Hydraulic pump station - 1 set
Production support table - 1 set
Decoiler Specifications
Type Manual Type (Standard) Hydraulic Type (Optional)
Width 500mm 600mm
Capacity Max 5 tons 5-15 tons
Inner Diameter φ450-550mm φ450-550mm
Outer Diameter φ1500mm φ1800mm
Roll Forming Machine Specifications
  • Material Thickness: 0.7-2.0mm
  • Number of Roller Stations: 16 stations
  • Roller Material: GCR15 steel polished and chrome coated HRC58-62°
  • Shaft Material: High grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (Shanghai brand)
  • Shaft Diameter: 80mm (Solid shaft)
  • Bottom Frame: 350*175*8mm H steel
  • Frame Panel Thickness: 20mm
  • Driven Type: 1.2 inch Chain
  • Speed: 4-6 m/min
  • Cooling system included
  • Lubrication system included

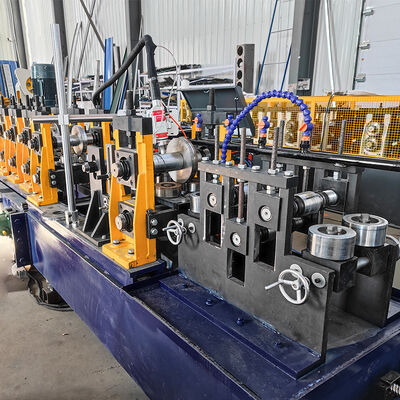

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture 1
Cutting System Specifications
Type Mould Type
Blade Material Cr12mov quenching and grinding
Frame Processing Whole bottom frame grinding for high-precision
Blade Processing Wire-electrode cutting (upper blade not straight - technical requirement)
Working Type Hydraulic
Stacker Options
Type Manual Auto (Optional)
Length 2 pieces 6m or 12m
PLC Control System
Main Item Parameter Detail
PLC Delta (standard) or according to request
Inverter China brand (standard) or according to request
Touch Screen Mcgs (standard) or according to request
Encoder China brand (standard) or according to request
Voltage/HZ/Phase 380v/50-60hz/3phase
Hydraulic Pump System

The system is driven by a Gear Pump. After filling hydraulic oil into the tank, the pump drives the hydraulic cylinder to execute cutting functions. The system includes hydraulic tank, Gear Pump, hydraulic pipes, and two Solenoid Valves.

Main Item Parameter Detail
Motor 3kw China brand or according to request
Pump China brand or according to request
Solenoid Valve China brand or according to request
Cooling System Cooling fan

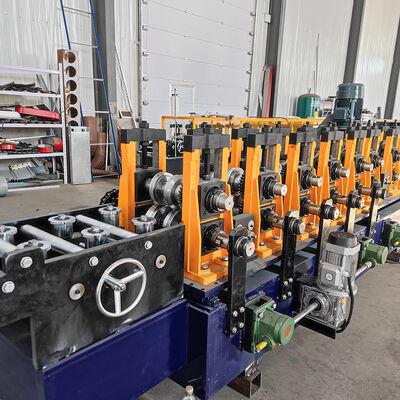

Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture 2
