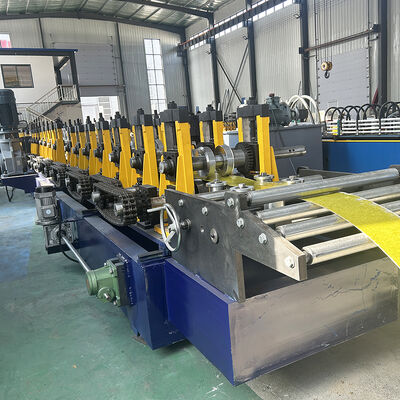

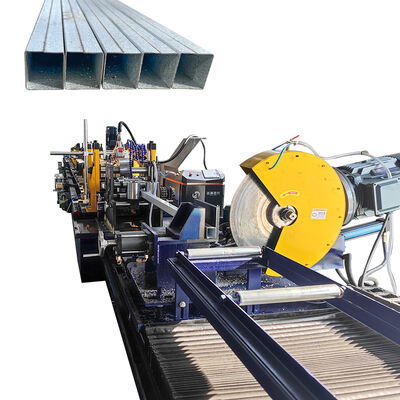

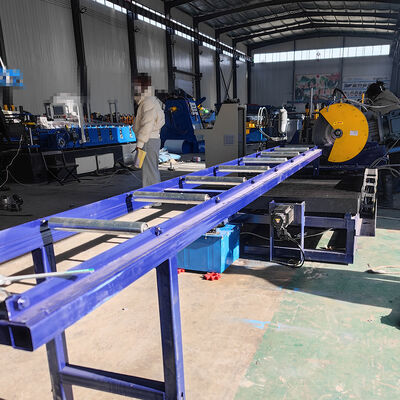

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Gambar besar :  Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Detail produk:
Tempat asal: Cina
Nama merek: BEST
Sertifikasi: CE
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD$18000---80000
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 20 Set/Bulan
Kontak

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine

Deskripsi
Nama: Mesin Roll Forming Tabung Las Laser Multi Ukuran Berkecepatan Tinggi Sertifikasi: CE/ISO9001
Kondisi: Baru Dimensi (l*w*h): 9600mm*1300mm*1450mm
Voltase: ≤0,08%D bahan mentah: Lembaran galvanis
Menyoroti:

hydraulic flying cutting roll forming machine

,

high speed laser welding tube machine

,

multi size down spout forming machine

Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine
Automatic Change Size Laser Welding Pipe Making Roll Forming Machine Manufacture
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine 0
Machine Components
Name No. Unit
Decoiler 1 set
Pre slide cutter 1 set
Roll forming machine 1 set
Laser welding machine 1 set
Control box 1 set
Cutter device 1 set
Output table 1 set
Cooling system 1 set
Technical Specifications
No. Specification
1 Suitable Raw Material: Color or galvanised steel plate
2 Width of Raw Material: according to pipe size
3 Thickness of Raw Material: 1-3mm
4 Main Machine Dimensions: 12*0.8*1 meters
5 Motor Power: 7.5KW + 2.2KW
6 Rolling Material: 45# steel (plated with chrome on surface)
7 Rollers Station of Rollformer: 16 sets
8 Production Line Speed: 15-20m/min
9 Diameter of the rollers: Φ70 mm
10 Voltage: 380V 50Hz 3phases
11 Material of the cutting plate: Cr12 mould steel
12 Hydraulic oil: 40#
13 Processing precision: Within 1mm
14 Control system: Mitsubishi PLC with touching screen
Main Technical Parameters
DECOILER
  • Max. Width: 200mm
  • Inner Diameter: Φ450 - Φ550 mm
  • Out Diameter: 1500 mm
  • Max. Loading Capacity: 3000 kgs
  • Control system: manual
ROLL FORMING MACHINE
  • Material Thickness: 0.7-2.0mm GI
  • NO. of roller Stations: 16 stations
  • Material for Rollers: GCR15 steel polished and coated with chrome HRC58-62°
  • Material for shaft: high grade 45# steel polished (CNC lathe)
  • Motor Power: 11 KW (shanghai brand)
  • Diameter of shaft: 80mm (Solid shaft)
  • Bottom frame: 350*175*8mm H steel
  • Frame panel: Thickness 20mm
  • Driven type: 1.2 inch Chain
  • Speed: about 4-6 m/min
  • Cooling system
  • Lubricate system
Hydraulic Flying Cutting High Speed Multi Size Laser Welding Tube Making Roll Forming Machine 1
Laser Welding Machine Specifications
No Name Description
1 Machine cabinet High strength sheet metal structure
2 Electronic control system ZYJC-2022A
3 Fiber optic laser 3kw
4 Controller ZYJC-PLC2022
5 Welding head 3000W Precision Focus Customization
6 Laser chiller ZYJC-3000W
7 Peripheral environment Ventilation, no impact within 5 meters
8 Voltage 380v 50hz 3p
9 Ground Type Direct centralized
For more information, please contact us.
