Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine
Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine

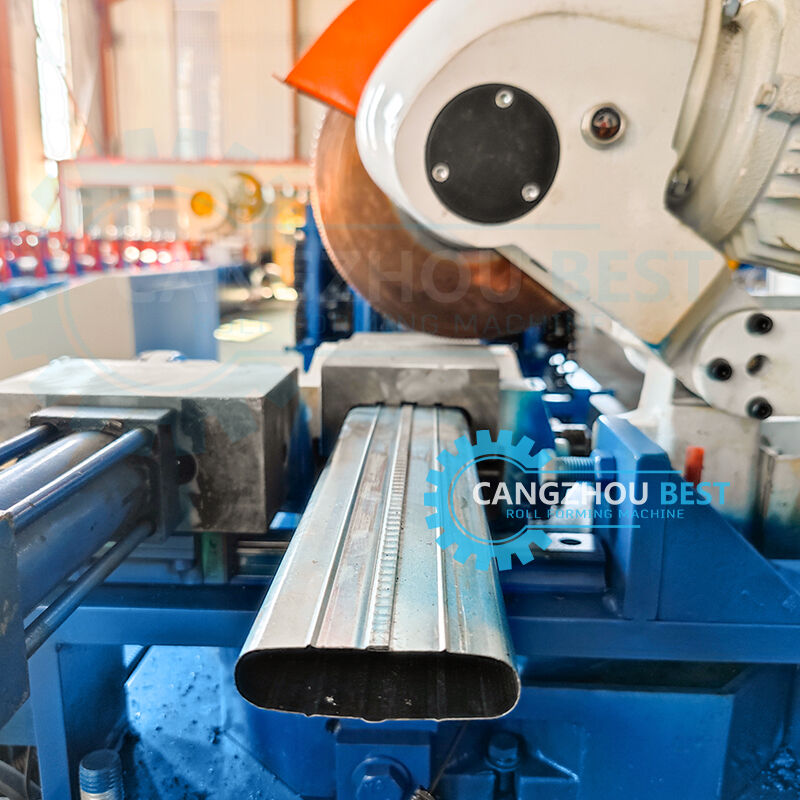

Gambar besar :  Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine

Detail produk:
Tempat asal: China Hebei
Nama merek: CHBEST
Sertifikasi: CE/BV/SGS
Nomor model: XY80
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Kemasan rincian: film plastik untuk mesin telanjang
Waktu pengiriman: 20-30 hari
Menyediakan kemampuan: 20 Set/Bulan
Kontak

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine

Deskripsi
Nama Produk: Profil Tabung Air Bentuk Bulat Baja Galvanis Membuat Mesin Roll Forming Jaminan: 2 Tahun
Kecepatan mesin: 4-6m/mnt Ketebalan Bahan: 0.3-0.8mm
Sistem yang Didorong: Rantai atau kotak persneling Sistem kendali: PLC
Menyoroti:

galvanized steel seaming roll forming machine

,

PLC control square roll forming machine

,

down spout roll forming machine with warranty

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine
This advanced roll forming machine is designed for precision manufacturing of square shape seaming profiles from galvanized steel, aluminum, and sheet materials.

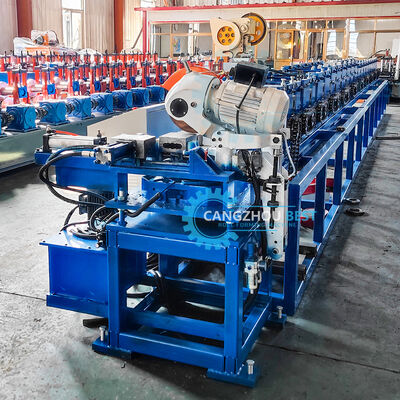

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine 0
Technical Specifications
Raw Material Compatibility Sheet, galvanized steel sheet, aluminum sheet
Material Thickness 1mm
Roller Material High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft Material High grade NO. 45 carbon wrought steel
Cutting Blade Cr12 mould steel with quenched treatment
Shaft Diameter 70 mm
Forming Steps 16 rows
Productivity 12 m/min
Hydraulic Station Power 22 KW
Hydraulic Pressure 10-12MPa
Control System Famous PLC computer control
Cutting Table Material Cr12 mould steel with quenched treatment
Machine Dimensions 7500mm × 1150mm × 1510mm
Hydraulic Oil 40# hydraulic oil
Electrical Requirements 380V 50 Hz 3 Phase or as required
Manual Decoiler Specifications
Dimensions 1700mm × 1000mm × 800mm
Feeding Width 500mm
Capacity 3 Ton
Expand & Fight Range 420mm - 510mm
Expand & Fight Mode Inner expand and fight by manual
Feeding Method Manual
Forming Section Details
Profile Steel Thickness 0.3-0.8 mm carbon steel and stainless steel
Main Motor Power 2 × 5.5 KW, AC motor, side motor to save space (Brand: Guomao)
Voltage/Frequency/Phase 380V, 50Hz, 3Phase (customizable)
Roll Stations 15 stations + 1 rectify station
Roller Material SAE1045, hardness and chrome plated surface
Shaft Diameter 65 mm material: SAE1045
Forming Speed 0-18 m/min
Transmission Chain, 1.0 inch double line

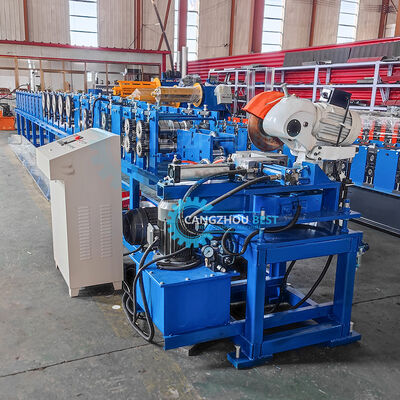

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine 1
Hydraulic Station
Hydraulic Power 5.5kW
Working Pressure 12Mpa adjustable
Solenoid Valve 1 group
Hydraulic Oil 46# hydraulic oil
Color Blue (customizable)
Control System Features
  • Programmable setting of profile length and quantity
  • Automatic equipment stopping after completion of cutting programme
  • Operating system languages: English and Chinese
  • Computer-controlled length & quantity with automatic cutting
  • PLC brand: Panasonic
  • Frequency converter brand: Yaskawa (quantity: 1)
  • Touch screen: Taiwan Weinview
Packaging & Shipping
Packaging: Main machine is nude; computer control box packed by carton box
Transportation: Requires one 40-foot container
Business Terms
Payment Terms 30% deposit by T/T in advance, 70% balance after inspection confirmation before shipment
Delivery Time Within 50 days after receiving deposit
Service & Warranty
  • 24 months comprehensive warranty
  • Free replacement of parts damaged due to quality issues within first two years
  • Technical guidance provided throughout machine lifetime
  • Overseas services available (costs incurred paid by buyers)

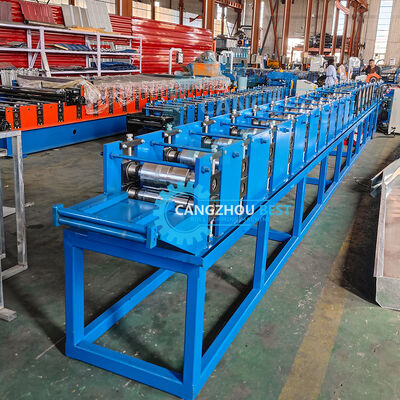

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine 2
