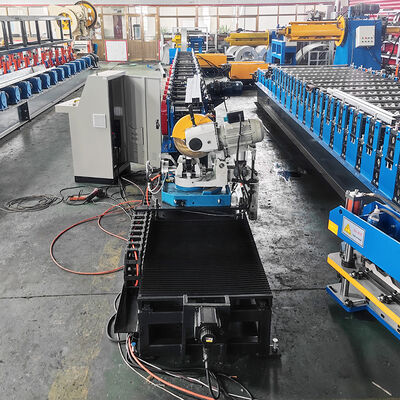

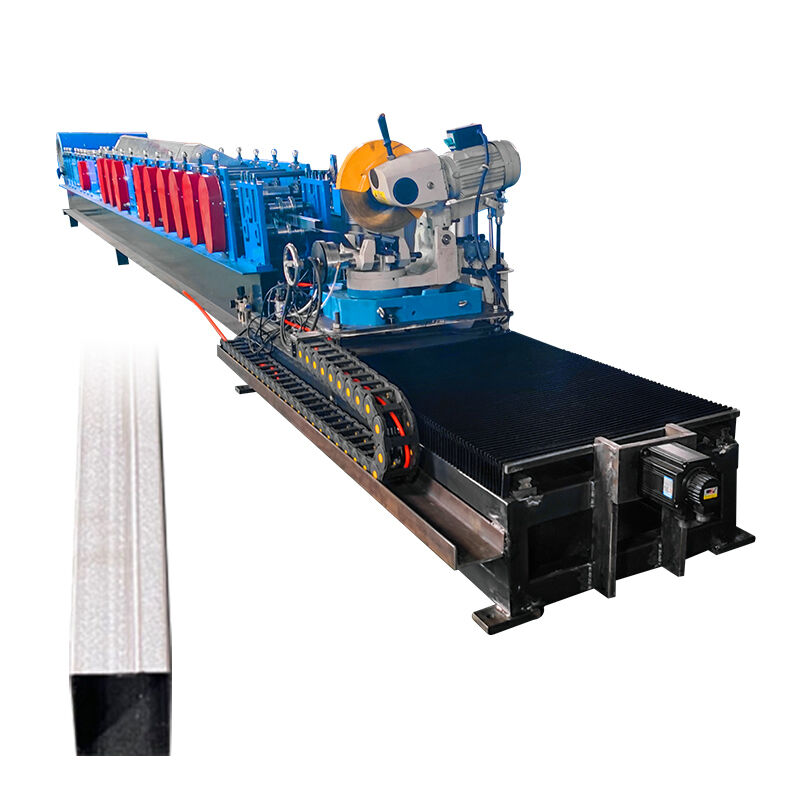

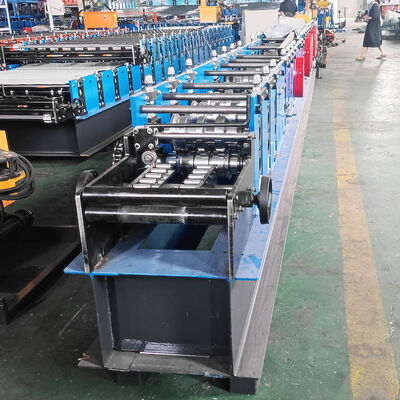

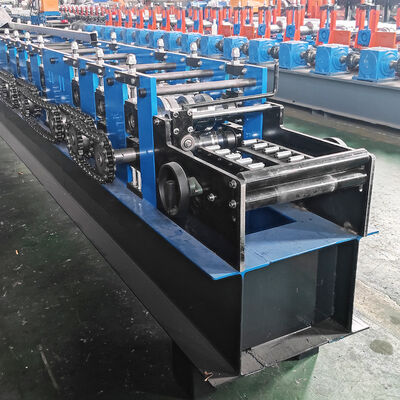

Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine

Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine
Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine
Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine

Gambar besar :  Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine

Detail produk:
Tempat asal: China Hebei
Nama merek: CHBEST
Sertifikasi: CE/BV/SGS
Nomor model: XY75
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Kemasan rincian: film plastik untuk mesin telanjang
Waktu pengiriman: 40-50 hari
Menyediakan kemampuan: 10 set/bulan
Kontak

Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine

Deskripsi
Nama Produk: Profil Baja Galvanis Aluminium Tabung Persegi Seaming Tube Membuat Mesin Roll Forming Jaminan: 2 Tahun
Seumur hidup: Lebih dari 10 tahun Bahan: PPGI/GI
Bingkai bawah: baja 360H Jenis Pemotongan: Hidrolik
Menyoroti:

aluminum galvanized steel roll forming machine

,

square tube seaming machine

,

down spout roll forming machine

Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine
Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine 0
Application & Benefits
This roll forming machine produces more durable square tube profiles compared to traditional PPC pipes, with superior resistance to aging. The integrated manufacturing process enhances project cohesion and improves overall project aesthetics.
The system includes a drainpipe bending machine for connecting straight drainpipes with elbow fittings, ensuring complete drainage system compatibility.
Production Workflow
Decoiler
Feeding System
Roll Forming
Cut to Length
Output Table
Machine Components
De-coiler - 1 set
Forming Machine - 1 set
Pressing Die - 1 set
Cutting Device - 1 set
PLC Control Box - 1 set
Hydraulic Pump Station - 1 set
Production Support Table - 1 set
Technical Specifications
Suitable Materials Color steel plate, galvanized sheet, aluminum coils
Material Feed Width Profile-dependent
Roller Stations 18 rows
Material Thickness 0.3-0.8mm
Power Requirements 4+4kw
Machine Dimensions 8500×800×1500mm
Production Speed 8-12m/min
Shaft Diameter 52mm
Machine Weight Approximately 4.8 Tons
Voltage 380V 50Hz 3-phase
Rolling Material Carbon Steel 45#
Cutting Plate Material Cr12
Main Frame Thickness 16mm steel plate
Main Structure 300 H steel
Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine 1
PLC Control System
Advanced PLC control system manages machine startup/shutdown, production counting, length settings, and speed control. Features Taiwan-sourced PLC, frequency converter, and Delta touch screen for high-speed operation with exceptional stability, precision, and longevity. Additional electrical components from Panasonic ensure reliable performance.
Receiving Table
Designed to collect finished products and transport them to designated locations. Available in standard, better, and premium configurations. Standard package includes two 3-meter tables, with custom options available to meet specific customer requirements.
Decoiler System
Passive uncoiling system supports steel coils and feeds material to the forming process. Loading capacity: 3 Tons. Uncoiling width: 500mm. Compatible with inner diameters: 450-550mm.
Aluminum Galvanized Steel Profile Square Tube Seaming Tube Making Roll Forming Machine 2
Hydraulic Station
Gear pump-controlled hydraulic system powers the cutting mechanism. Power: 5.5kw. Hydraulic oil: 46#. Complete system includes hydraulic tank, oil pump, four hydraulic pipes, and two electromagnetic valves.
Customer Service Commitment
Pre-Sale Service
Factory visit invitations for machine inspection
Quality products at competitive prices with quick response times
Sales Service
Production scheduling and prompt delivery
Cost-effective shipping solutions with fast forwarders
Timely document processing
24/7 customer support availability
After-Sale Service
Comprehensive support available via WhatsApp or Telephone for any technical questions or service needs.
