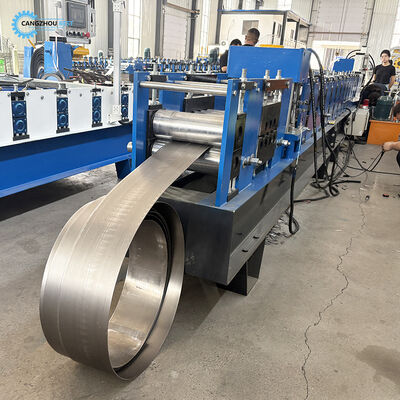

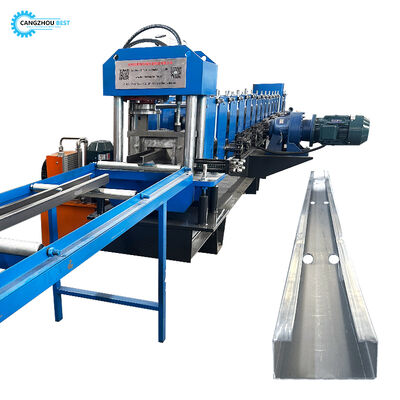

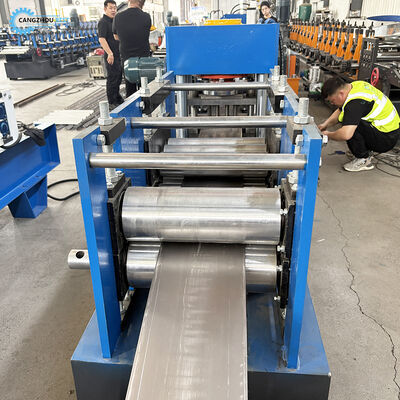

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine
Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine
Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Gambar besar :  Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Detail produk:
Tempat asal: China Hebei
Nama merek: CHBEST
Sertifikasi: CE/BV/SGS
Nomor model: XY100-300
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Set
Kemasan rincian: film plastik untuk mesin telanjang
Waktu pengiriman: 30-40 hari
Menyediakan kemampuan: 20 Set/Bulan
Kontak

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine

Deskripsi
Nama Produk: Pembuatan Mesin Pemotong Otomatis Baja Hitam Secara Manual Ubah Ukuran C Mesin Roll Forming Purlin Dimensi mesin: 10mx1.8mx1.4m
Sistem yang Didorong: Rantai atau kotak persneling Sistem Pengendalian: PLC
Jaminan: 2 tahun Seumur hidup: Lebih dari 10 tahun
Menyoroti:

black steel c purlin roll forming machine

,

manual size change purlin machine

,

auto cutting c purlin former

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine



Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Advantage:

One machine can produce  C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.


Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine 0

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set



Decoiler


Type Manual type(standard) Hydraulic type(option)

Width 500mm 600mm
Capacity 5000kgs 5000kgs-8000kgs
Inner diameter 450-550mm 450-550mm
Outter dimater 1500mm 1800mm


roll forming machine

(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°

(4) Material for shaft: #45 steel after treatment

(5) Diameter of shaft: 80mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min

(10) Driven type: 2＂Chain

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine 1



Punching device


Item Parameter detail
Frame processing the whole levelling surface is made by drilling machine
Mould material Cr12mov
Mould processing wire eletrode-cutting for the mould shape, it will save pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa


Cutting device


Type

Mould cutting
Blade material Cr12mov quenching and grinding
Frame processing

the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology
Working Hydraulic type



Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine 2
Stacker


Type

Manual

Auto(option)
Length 2pieces, length is adjustable according to your requirement

PLC


Main item Parameter detail
PLC

Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump


Main Item Parameter detail
Motor

3kw China brand or according to your request

Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan
