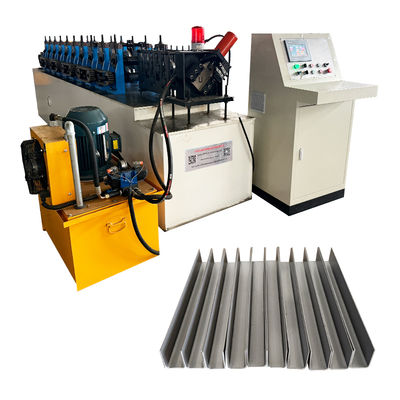

Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine

Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine
Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine
Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine

Gambar besar :  Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine

Detail produk:
Tempat asal: CINA
Nama merek: BEST
Sertifikasi: CE
Nomor model: YX45
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: USD8000---15000
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 20 set/bulan
Kontak

Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine

Deskripsi
Nama: Profil Saluran C Gipsum Baja Galvanis Membuat Mesin Roll Forming Otomatis Dingin Ketebalan material: 0,6-1,6mm (235-345Mpa)
BATANG: Baja 45 # Berkualitas Tinggi Dengan Perlakuan Panas. Pembentukan kecepatan: Sekitar 20 m/menit
Sistem pengendali: Plc
Menyoroti:

galvanized steel gypsum channel machine

,

cold roll forming machine for c profile

,

auto roll forming machine with warranty

Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine



Technical specification:



Stud, Track and Channel Roll Forming Machine
No. Item Specification Optional
1 Suitable material Type:Galvanized Coil, PPGI, Carbon steel Coil
Thickness(mm):0.25-1.2
Yield strength: 250 – 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2 Nominal forming speed(m/min) 10-15m/min Or according to your requirement
3 Forming station 12statiins
4 Decoiler Manual decoiler Hydraulic decoiler or double head decoiler
5 Main machine motor Sino-German Brand Siemens
6 PLC brand Panasonic Siemens
7 Inverter brand Yaskawa
8 Driving system Chain drive Gearbox drive
9 Rollers’ materail Steel #45 GCr15
10 Station structure Wall panel station Forged Iron stationOr torri stand structure
11 Punching system No Hydraulic punching station or Punching press
12 Cutting system Post-cutting Pre-cutting
13 Power supply requirement 380V 60Hz Or according to your requirement
14 Machine color Industrial blue Or according to your requirement



Main components of stud and track roll forming machine



No. Item Quantity
1 Uncoiler 1 Set
2 Guide Device 1 Set
3 Roll Forming Machine 1 Set
4 Hydraulic Station 1 Set
5 Ran-out Table 2 Sets
6 PLC System 1 Set


Machine Components and Specifications

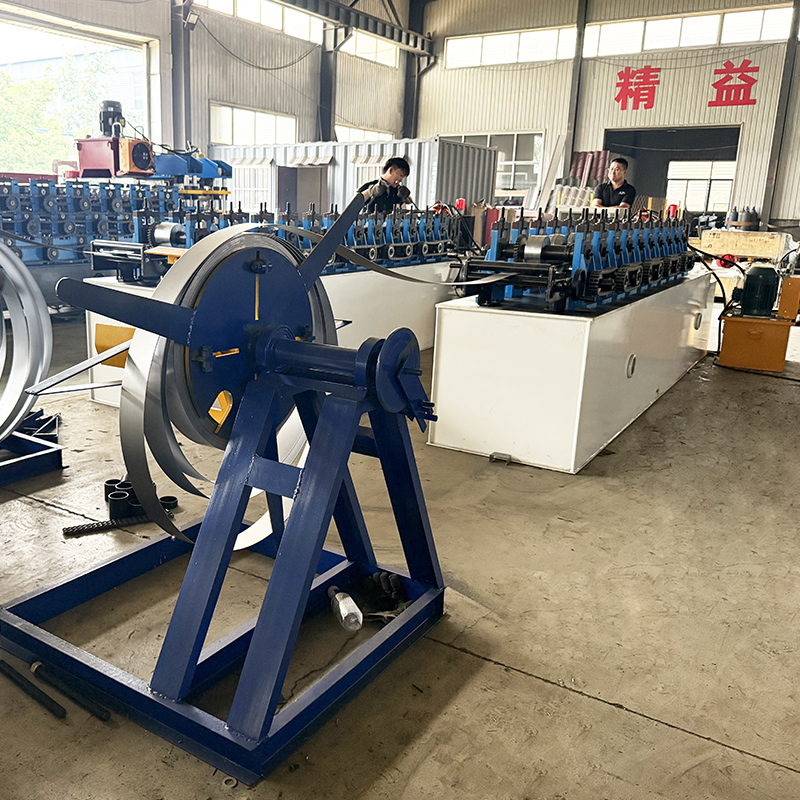

3 Ton Electric Uncoiler

  1. Max.weight: 3TON
  2. I.D of Coil: 450-550mm
  3. Steel Plate and C beam welded
  4. Function: The uncoiler is used to hold and uncoil the coils. This manual uncoil is unpowered. You need to manually adjust the uncoiler mandrel to tension the coil

Feeding and Guiding Device of Stud and Track Machine

  1. Width Range:200-300mm
  2. Feeding Type: Manual feeding
  3. Guiding Type: Manual adjust
  4. Function of Guiding: Avoid the deviation of the material

Metal Stud and Track Roll Forming Machine

  1. Machine Structure: The main base use C beam welded, assemble the driven motor inside of the machine, the mill structure use whole plate welded, bottom bearing block assemble in the steel plate directly which is same as Taiwan design
  2. Forming Speed: 12-15m/min
  3. Machine Voltage and Frequency:415V, 50Hz, 3Phase
  4. Material of Rollers: GCR15, CNC processing, HRC58-62, chromed 0.05mm thickness
  5. Forming Steps:18
  6. Material of Shaft: ASTM1045, lathe process and polish the out diameter
  7. Diameter of shaft: 60mm
  8. Material of Spacers: ASTM1045, wall thickness: 8mm, chromed and hardness treatment.
  9. Driven Motor: Chinese Guomao Brand, 5.5KW
  10. Transmission: By gears
  11. Machine Side Wall Panel:18mmGalvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine 0

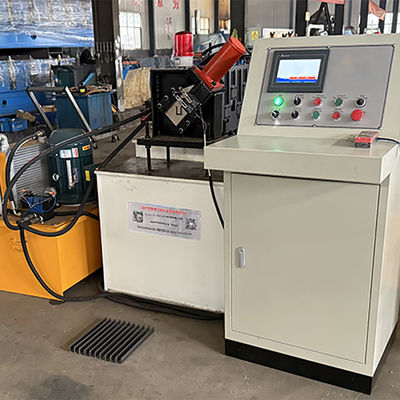

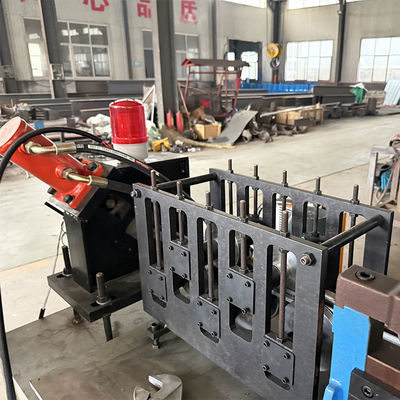

Hydraulic Cutting Device

  1. Cutting Type: Hydraulic cutting, roll forming part stop when cutting
  2. Hydraulic Motor Power:4KW
  3. Hydraulic Working Pressure: 12-16Mpa
  4. Material of Cutting Blade: Cr12 with heat treatment
  5. Length measuring: Automatic encoder(Omron Brand) length measuring
  6. Tolerance of Length: ±1.0mm



Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine 1



Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine 2
