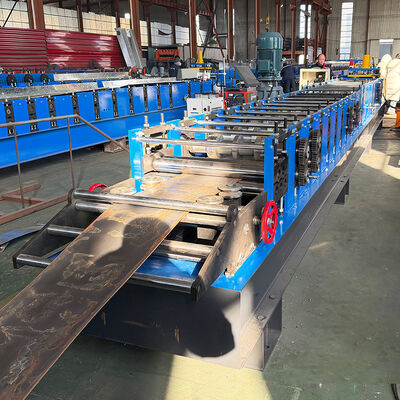

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness
PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness
PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Gambar besar :  PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Detail produk:
Tempat asal: China Hebei
Nama merek: CHBEST
Sertifikasi: CE/BV/SGS
Nomor model: XY150
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 SET
Kemasan rincian: film plastik untuk mesin telanjang
Waktu pengiriman: 30-40 hari
Menyediakan kemampuan: 20 set/bulan
Kontak

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness

Deskripsi
Nama Produk: Kontrol PLC Profil Baja Galvanis Purlin Membuat Mesin Roll Forming Ketebalan 3mm Warna: Biru atau sebagai permintaan Anda
Dimensi mesin: 7,5mx1,8mx1,4m Sistem Pengendalian: PLC
Jenis Pemotongan: Hidrolik Jaminan: 2 Tahun
Seumur hidup: Lebih dari 10 tahun
Menyoroti:

PLC control purlin roll forming machine

,

galvanized steel profile forming machine

,

3mm thickness purlin making machine

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine
Advanced 3mm thickness roll forming machine with PLC control system for efficient production of galvanized steel profile purlins.
PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness 0
Production Workflow
Decoiler → Feeding → Leveling → Roll Forming → Punching → Cutting → Output Table
PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness 1
Machine Components
Component Quantity
De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
Punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 set
Technical Specifications
Decoiler
Max. Width: 500mm
Inner Diameter: Φ450 - Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 3000 kgs
Leveling Device
Thickness: 1-3 mm
Rollers for Leveling: 5 rollers
Roll Forming Machine
Material Thickness: Galvanized steel 1.5-3.0mm, stainless 1.5mm
Rollers: 18 Groups
Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°
Material for shaft: #45 steel after treatment
Diameter of shaft: 80mm
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 11kw
Rolling Speed: 8-10 m/min
Punching Device Specifications
Item Parameter Detail
Frame processing The whole leveling surface is made by drilling machine
Mould material Cr12mov
Mould processing Wire electrode-cutting for the mould shape, saves pressure
Hole size According to your request
Hole number According to your request
Pressure 20Mpa
Product Photos

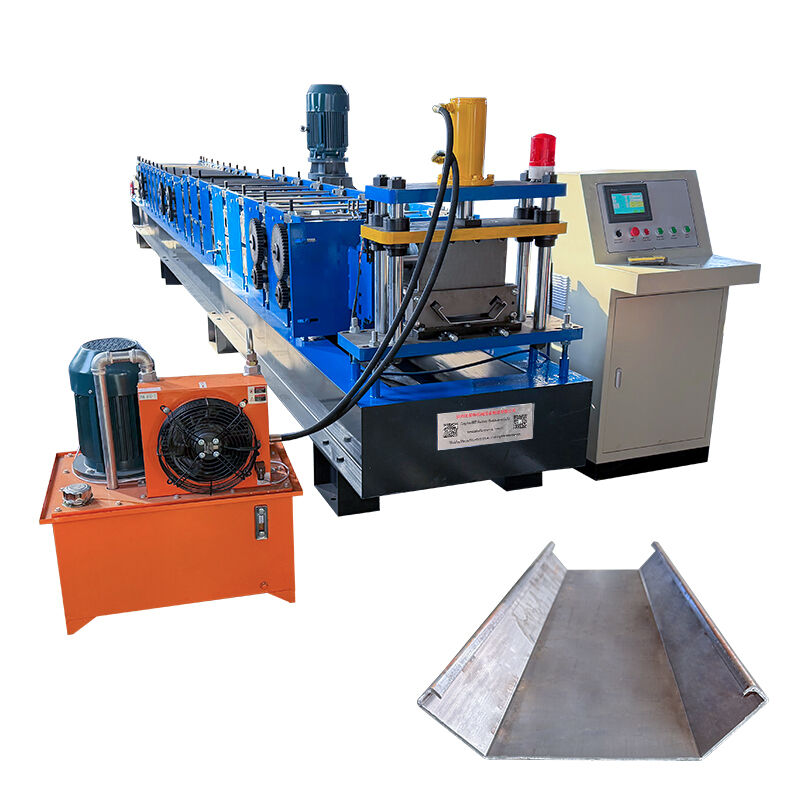

PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness 2 PLC Control Galvanized Steel Profile Purlin Making Roll Forming Machine 3mm Thickness 3
Installation & Training
On-site training available for visiting buyers with face-to-face installation and operation instruction
Remote support includes user manual and instructional CD for self-installation
Technical assistance available at your facility with arrangement of board and lodging
Request for Quotation Process
Submit your specific requirements and production needs
Receive customized quotation with recommended solutions
Negotiate and confirm all details including specifications and trading terms
Complete advanced payment and begin production
Factory quality inspection and adjustments to meet contract requirements
Finalize balance payment and arrange shipping
Receive shipping documentation for timely customs clearance
Take delivery of goods and activate warranty coverage
