Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions

Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions
Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions
Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions

Gambar besar :  Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions

Detail produk:
Tempat asal: Cina
Nama merek: BEST
Sertifikasi: CE
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 SET
Harga: USD35000--40000
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 20 set/bulan
Kontak

Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions

Deskripsi
Jenis: Rangka Baja & Mesin Purlin Jaminan: 18 bulan sejak menerima mesin
Layanan Purna Jual Disediakan: Insinyur tersedia untuk melayani mesin di luar negeri Kapasitas Produksi: 10-25 m/mnt
Menggunakan: Purlin nama: Profil Baja Perubahan Cepat Mesin Roll Forming Casstte CU Purlin Dua Fungsi
Menyoroti:

Steel profile roll forming machine

,

Fast change cassette purlin machine

,

Two function C U purlin former

Steel Profile Fast Change Cassette C & U Purlin Roll Forming Machine
Advanced dual-function roll forming system designed for efficient production of C and U purlin profiles with rapid size change capabilities.
Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions 0
Technical Components
Decoiler System
  • Type: Hydraulic auto decoiler
  • Weight capacity: Maximum 3.0 tons
Guiding System
Precision guiding device ensures stable and secure feeding of raw material into the roll forming station.
Roll Forming System
  • Forming speed: 35 meters per minute
  • Roller stands: 15 rolling stations
Shaft & Frame Construction
Roller shafts are precision-tooled using grinding machines twice to ensure final product accuracy.
Bearing Quality
High-performance NTN brand bearings from Japan for reliable operation.
Machine Frame Design
Square tube frame construction with 30mm thickness provides exceptional strength to support all machine components.
Flare Control System
Two-group roller flare device with manual adjustment for precise control.
Size Change Capability
Full-automatic size change system allows purlin size adjustment within 1 minute.
Hydraulic Punching System
  • Punching dies: Made from durable Cr12 material
  • Drive system: Hydraulic station powered
  • Control: Hole locations programmable via PC panel
Technical Specifications
Suitable Material Glazed Steel Coil
Coil Width 300mm
Roller Configuration 13 rows
Machine Dimensions Approximately 9 × 1.9 × 1.3 meters
Power Requirement 20kW
Plate Thickness Range 1.5-3mm
Production Speed 5-10 meters per minute
Roller Diameter φ80mm
Machine Weight Approximately 7 tons
Voltage 380V 50Hz
Uncoiler One set unpowered rack
Feeding Platform One set
Rolling Material Gcr15
Galvanization Thickness 0.05mm
Shearing Machine One set
Cutting Blade Material Cr12
Hydraulic System One set
PLC Control One set
Processing Precision High precision manufacturing
Product Gallery

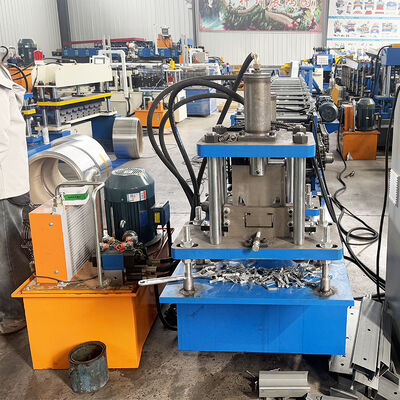

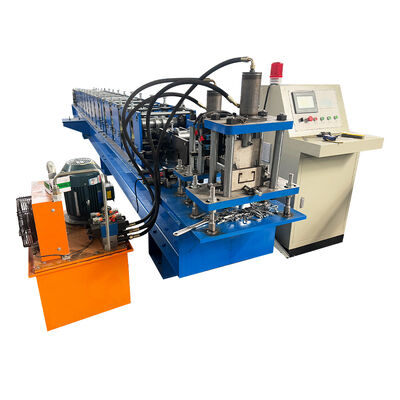

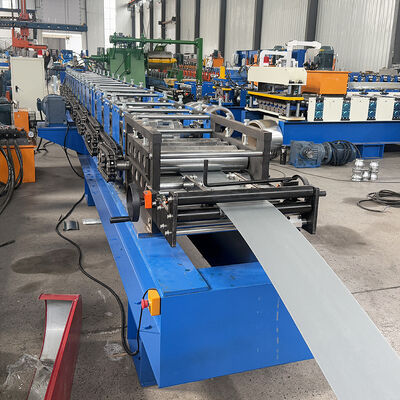

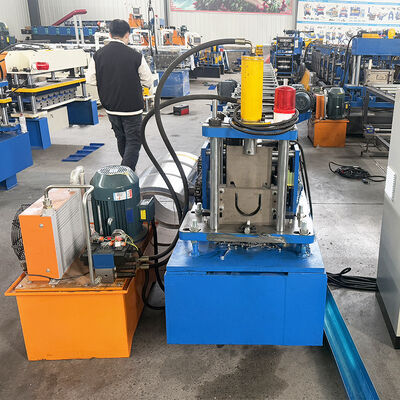

Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions 1 Steel Profile Fast Change Casstte C U Purlin Roll Forming Machine Two Functions 2
